TSW200 is a Teltonika Networks PoE+ 8 Port Ethernet switch with two SFP ports and eight Gigabit Ethernet ports.. Visit IC Plus to learn more!
TSW200
INDUSTRIAL 8 Port POE+ ETHERNET SWITCH
TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.
| SFP 2 x SFP ports for long range Fiber-optic communication | POE+ 8 x PoE+ ports with 802.af, 802.3at standard support | POWER BUDGET Total power budget at PSE up to 240 W | ETHERNET 8 x Gigabit Ethernet with speeds up to 1000 Mbps |
Industrial Automation and Control: Utilize the TSW200 to energize and connect industrial equipment like PLCs, sensors, and actuators. Control of these devices can be managed both remotely via the Internet and through local network setups.
Digital Signage and Multimedia Connectivity: The TSW200 serves as an effective solution for powering and linking digital displays such as TVs, monitors, and projectors. High-definition content streaming is facilitated through Internet or local network connections.
Networked Security and Access Management: Deploy the TSW200 to power and connect security apparatus like locks, alarms, and card readers. Device management and control are achievable remotely via the Internet or through local networks.
Internet of Things (IoT) Integration: The TSW200 PoE+ Switch is ideal for powering and connecting a range of IoT devices and sensors including temperature, humidity, and motion sensors. Data collection and analysis are supported through Internet or local network access.
Features:
- TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards
- Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network
- This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply
LARGE-SCALE VIDEO SURVEILLANCE
WITH REMOTE ACCESS
Summary
Surveillance solutions are a growing market. If we look around public spaces, more and more cameras are popping up on the streets, shopping malls, parking lots, leisure areas, and even around private buildings. Over the last couple of decades, security surveillance has become a hot topic in the public and private sectors. Data from 40 years' worth of research suggests that having a CCTV system notably decreases crime rates, especially in car parks and residential areas. They are also an instrumental tool in revealing the crimes that have occurred.
Challenges
Security surveillance solutions come with multiple challenges that vary by circumstances. Setting up efficient surveillance systems becomes even more tricky for large areas. They involve much more extensive ecosystems that still require powering up options, reliable connectivity, and the possibility to set up multiple cameras without overcomplicating the whole infrastructure. For example, car park surveillance involves far apart objects that are outside. In this case, a power source can become an issue just as connecting the cameras to the internet since the Ethernet cable can cover only distances up to 100 meters. Choosing the right connectivity product is crucial in solutions like these and can significantly impact the installation timeline and expenses.
Solution
In this solution, a powerful Gigabit Ethernet router - RUTX08 – provides connectivity for the whole ecosystem. RUTX08 is a solid industrial device with advanced security features and compatibility with RMS. In cases where a wired network is not available, a cellular router could also be an option. RUTX08 connects to the TSW200 switch via Ethernet to provide internet connectivity to the whole solution. This unmanaged Gigabit Ethernet device has eight available PoE+ ports that are sufficient to connect five CCTV cameras and two Access Points while powering them up at the same time. PoE+ standard found in TSW200 provides up to 30W of power per port, with a power budget of 240W, which would be enough even for more power-hungry PTZ cameras. Besides, Gigabit Ethernet offers enough speed and throughput for efficient video data transfer in real-time.
Whenever a solution requires connecting more cameras (or other devices) to the ecosystem, there is a possibility of using more TSW200 switches. In scenarios where the solution elements spread over a large area, there are two SFP ports in each TSW200 to establish long-range fiber optic communication. It enables reliably connecting one TSW200 to another even if they are more than 100m away from each other and maintain the same level of speed.
An infrastructure as large as this one comes with maintenance and support challenges. A security system only
serves its purpose if it is up and running without downtime. For this reason, remote management capability
becomes essential for running diagnostics and updates or receiving notifications whenever something goes out of
the ordinary. Teltonika Networks Remote Management System (RMS) allows staying on top of all these tasks and
even securely reaching non-Teltonika Networks devices for remote configuration and troubleshooting. Combining
these features provides a reliable high bandwidth solution with minimized installing and maintenance resources
due to PoE+ and RMS support.

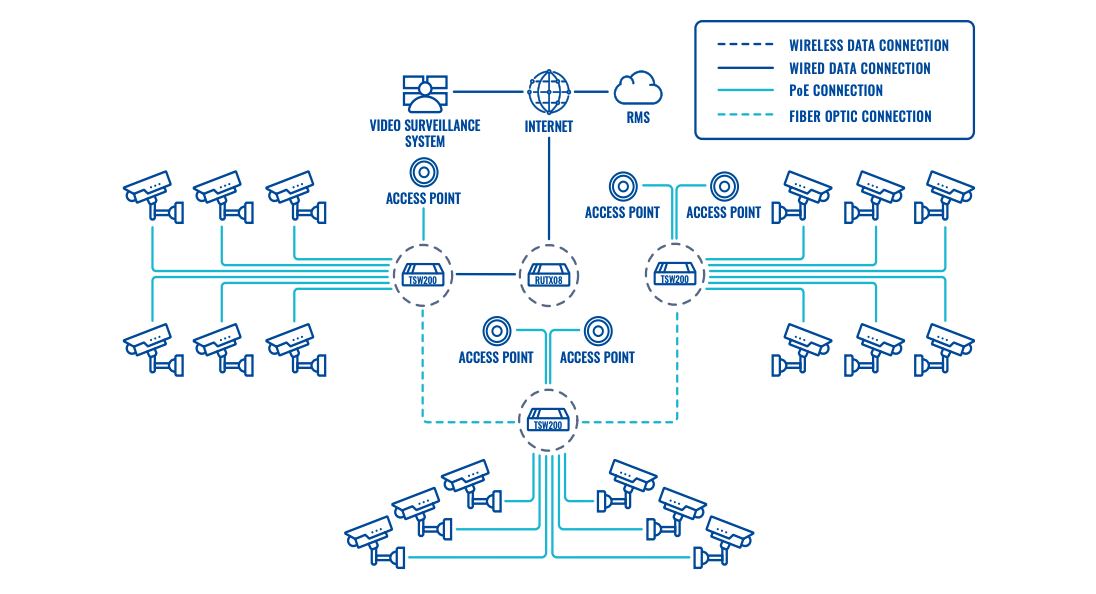

Topology
BENEFITS
• Eight PoE+ ports are sufficient to connect and power up a large device ecosystem with a power budget of 240W.
• SFP connection serves in scenarios where far apart elements require reliable and speedy connectivity.
• The industrial design of the TSW200 switch enables it to sustain harsh conditions and extreme temperature ranges (from -40 °C to 75 °C).
• Compatibility with RMS enables simple remote maintenance and diagnostics to prevent any downtime or security
threats.
Reliable surveillance is only possible with reliable and secure connectivity. Teltonika Networks has over two
decades of experience developing professional networking products with a great emphasis on security, reliability,
and ease of use. We focus on enabling our clients to reduce the complexity and increase the efficiency of their
solutions with advanced hardware and software features that result in cost-efficient and easy to support IoT
infrastructures.
