SKU: TPL-CPE510-KIT-v1
Shop TP-Link
Enhance your network connectivity with the TPL-CPE510-KIT-V1. Reliable and efficient performance. Learn more at www.ic.plus.
Warranty:
MFR - 36 Months
Register/Login to View Price
TP-Link’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).
15KM+ Wireless Dats Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 15km+, tested in the field.
TP-Link MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Features
- Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 26dBm/200mw
- System-level optimizations for more than 15km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

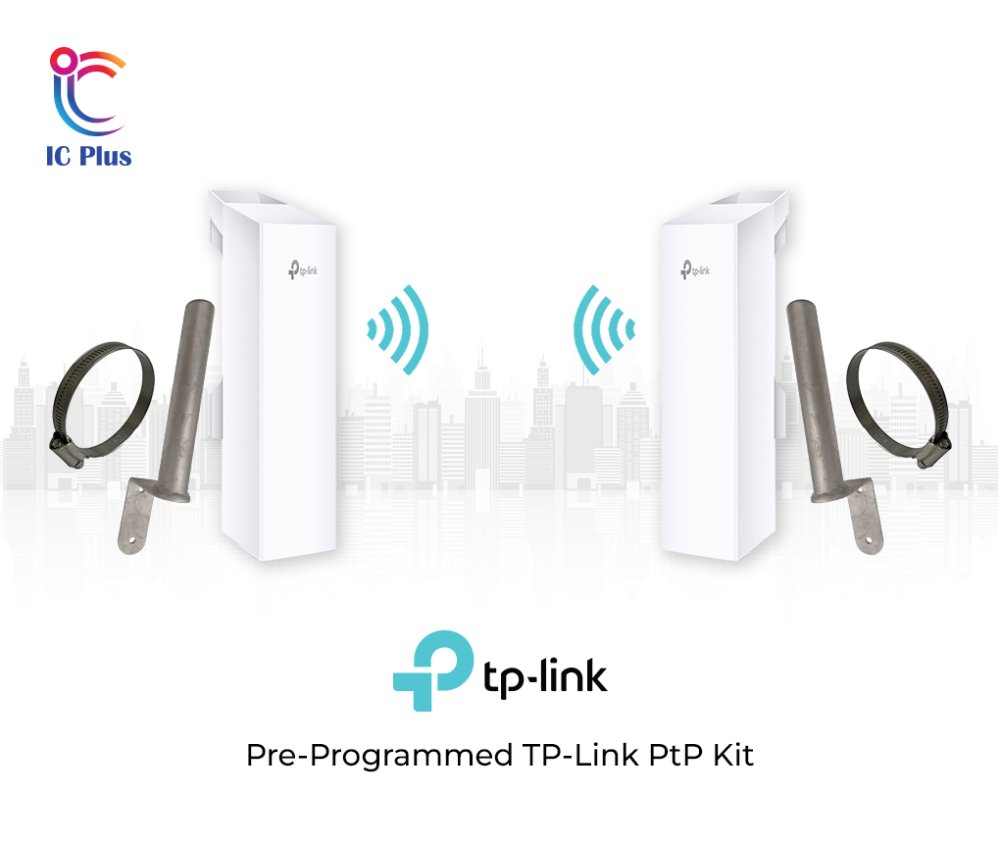

Kit Contents:
2pcs of Pre-Configured TPL-CPE510 - TP-Link 5GHZ 300mbs 13dbi outdoor CPE V3 (1x Access Point, 1x Client Station)
2pcs of MNT-L370 - TV Aerial & Wireless Radio Wall Bracket - Compact, Versatile & Rust-Resistant
2pcs of 30~40mm Stainless Steel Clips for securing CPE510 to wall bracket
The above TPL-CPE510 are Pre-Configured for your convenience. Each unit will be labled with a sticker indicating which is the Access Point and Client Station (Also available without Wall brackets TPL-CPE510-KIT-v2)
* Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.
** Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
*** Power supply distances are based on test results under normal usage conditions. Actual power supply distance will vary as a result of 1) AP status, including transmit power, connected devices and network traffic along with 2) cable properties, including type and texture, and 3) environmental factors, which include temperature and humidity.
