5-Port 2.5G Desktop Switch with 4-Port PoE++

    Categories

    TL-SG105PP-M2 showcasing its 5 multi-gigabit PoE+ portsTP-Link TL-SG105PP-M2 powering connected devices in a compact networking setupTL-SG105PP-M2 with durable and energy-efficient designTP-Link TL-SG105PP-M2 supporting high-speed Ethernet and PoE+
    TP-Link

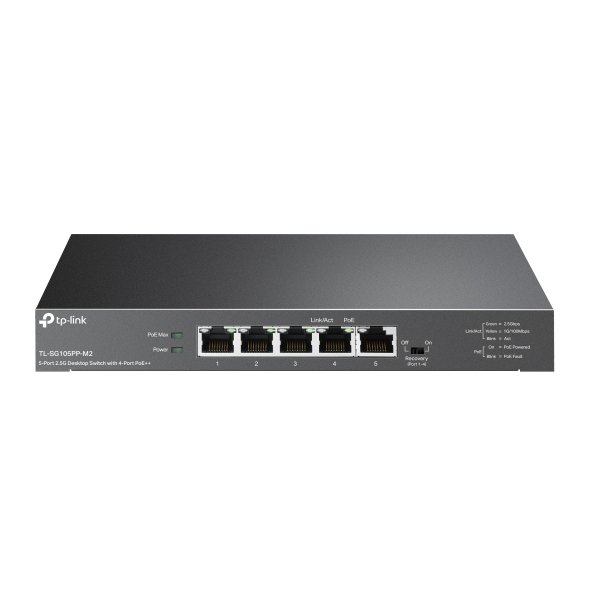

    TL-SG105PP-M2 showcasing its 5 multi-gigabit PoE+ ports
    TP-Link TL-SG105PP-M2 powering connected devices in a compact networking setup
    TL-SG105PP-M2 with durable and energy-efficient design
    TP-Link TL-SG105PP-M2 supporting high-speed Ethernet and PoE+

    Share this product on social media

    SKU: TPL-TL-SG105PP-M2
    TP-Link Shop TP-Link

    TL-SG105PP-M2, a 5-port multi-gigabit unmanaged switch with PoE+ support. Delivering up to 2.5Gbps per port, it ensures high-speed connectivity.

    MPN: TL-SG105PP-M2
    Warranty: MFR - Lifetime - Terms Apply



    Product Description


    TL-SG105PP-M2 is an unmanaged switch with 5 Gigabit ports that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-4. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

    The 2.5G ports support automatic negotiation to 10Mbps/100Mbps/1Gbps/2.5Gbps according to the type of connected device and provide sufficient bandwidth to unlock the highest performance of 2.5G/Multi-Gigabit devices, including NAS, a personal workstation, 8K video stream, and 2.5G Wi-Fi 6 AP.

    • Power Over Ethernet
    4 RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those connected IEEE 802.3af/at/bt compliant Powered Devices (PDs).

    • Overload Arrangement
    TL-SG105PP-M2 has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 123 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

    • Intelligent Power Management
    Priority (port 1 > port 2 > port 3 > port 4): This function will help protect the system when the system power is overloaded. For example, port 2, 3, and 4 is using 35 W respectively (maximum power per port is 60 W); the system power is 105W in total. If there is an additional PD inserted to port 1 with 23 W, and then the system will cut off the power of port 4 because of the overloaded power, this means port 1 will use 23 W respectively and port 2&3 will use 35 W, no power will be supplied to port 4.

    • Highlight Performance
    - With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-4. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically.
    - Provides super-fast connections to 2.5G NAS, Server, 2.5G PCIe Adapter/ NIC, gaming computer, 2.5G WiFi 6 AP, 8K video, and more.
    - Auto-negotiation for 10Mbps/100Mbps/1Gbps/2.5Gbps connections provide optimal performance.

    TL-SG105PP-M2 is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++ TL-SG105PP-M2 is a great selection for expanding your network.
    Technical Specifications
    User guide Yes MAC address table 4000 entries
    Switching capacity 25 Gbit/s Rack mounting No
    Fanless Yes Power supply included Yes
    Power over Ethernet (PoE) Yes Heat dissipation 488.89 BTU/h
    Input voltage 53.5 V Forwarding rate 18.6 Mpps
    Store-and-forward Yes Power source DC/PoE
    Auto-negotiation Yes Housing material Steel
    Input current 2.43 A Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
    Cable types supported Cat3, Cat4, Cat5, Cat5e Number of power supply units 1
    Total Power over Ethernet (PoE) budget 123 W Power over Ethernet (PoE) power per port 60 W
    MAC address auto-learning supported Yes MAC address auto-aging supported Yes
    Power over Ethernet 4PPoE (PoE++) ports quantity 4 2.5G Ethernet (copper) ports quantity 5
    Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 10 - 90%
    Operating temperature (T-T) 0 - 40 °C AC input voltage 220 V
    AC input frequency 50 Hz Width 209 mm
    Depth 126 mm Height 26 mm
    Package type Box Certification CE, FCC, RoHS
    LED indicators Yes Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
    Product colour Black Storage relative humidity (H-H) 5 - 90%
    Cables included AC IGMP snooping Yes
    Quality of Service (QoS) support Yes Power consumption (max) 143.37 W
    Switch type Unmanaged Basic switching RJ-45 Ethernet ports quantity 5
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) 10G support No
    Flow control support Yes Auto MDI/MDI-X Yes
