SKU: TPL-TL-SG116P
Shop TP-Link

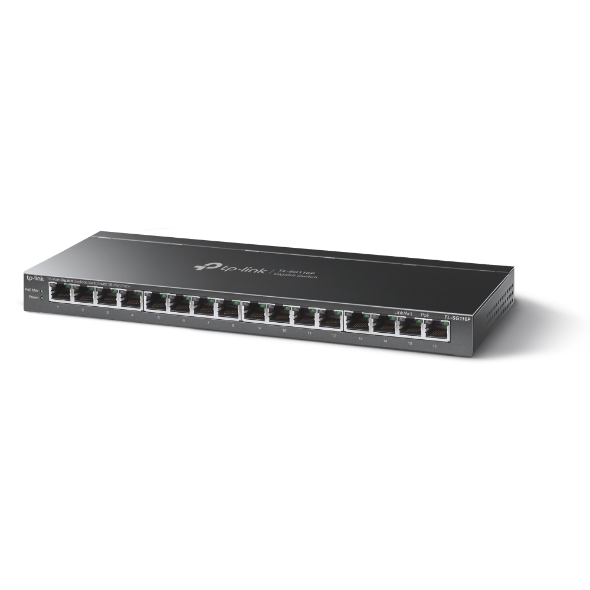

P-Link TL-SG116P, a 16-port Gigabit unmanaged switch with 8 PoE+ ports. Ideal for powering devices like IP cameras, VoIP phones, and access points
MPN:
TL-SG116P
Warranty:
MFR - Lifetime - Terms Apply
Register/Login to View Price
TL-SG116P is an unmanaged switch with 16 Gigabit ports that requires no configuration and provides
16 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along
with data in one single cable allowing you to expand your network to where there are no power lines or
outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc
- Power Over Ethernet
16 RJ45 ports of the switch support Power over Ethernet (PoE) function. These PoE ports can
automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs)
- Overload Arrangement
TL-SG116P has the priority function which will help protect the system when the system power is
overloaded. If all PoE PDs power consumption is ≥ 120 W*, a priority will be arranged among the PoE
ports, then the system will cut off the power of the lowest-priority port
- Intelligent Power Management
Priority (port 1 > port 2 > port 3>... > port 16): This function will help protect the system when the
system power is overloaded. For example, port 1, 2, 3 and 5 is using 25 W respectively (maximum
power per port is 30 W); the system power is 100 W in total. If there is an additional PD inserted to port
4 with 30 W, and then the system will cut off the power of port 5 because of the overloaded power, this
means port 1, 2, 3 will use 25 W respectively and port 4 will use 30 W, no power will be supplied to port
- Highlight Performance
• Up to 250 m PoE power supply and data transmission under Extend Mode** for port 1-4.
• Priority Mode ensures high priority of port 1–4 to guarantee the quality of sensitive application.
• Isolation Mode easily divides traffic for port 1-7/8-14 to avoid snooping and tampering, which
improves LAN security and performance.
• With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered
devices (PD) for port 1-16. When the switch finds that a PD stops sending data packets to the switch
for a long period, the switch will reboot it automatically
